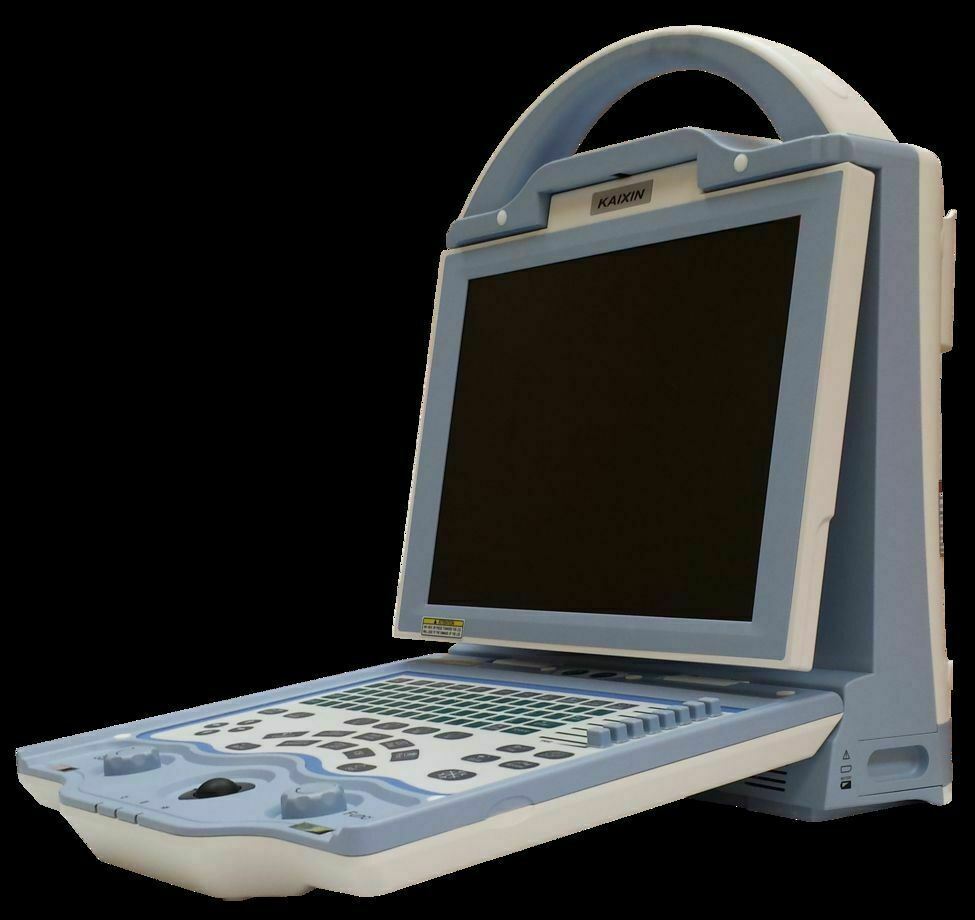

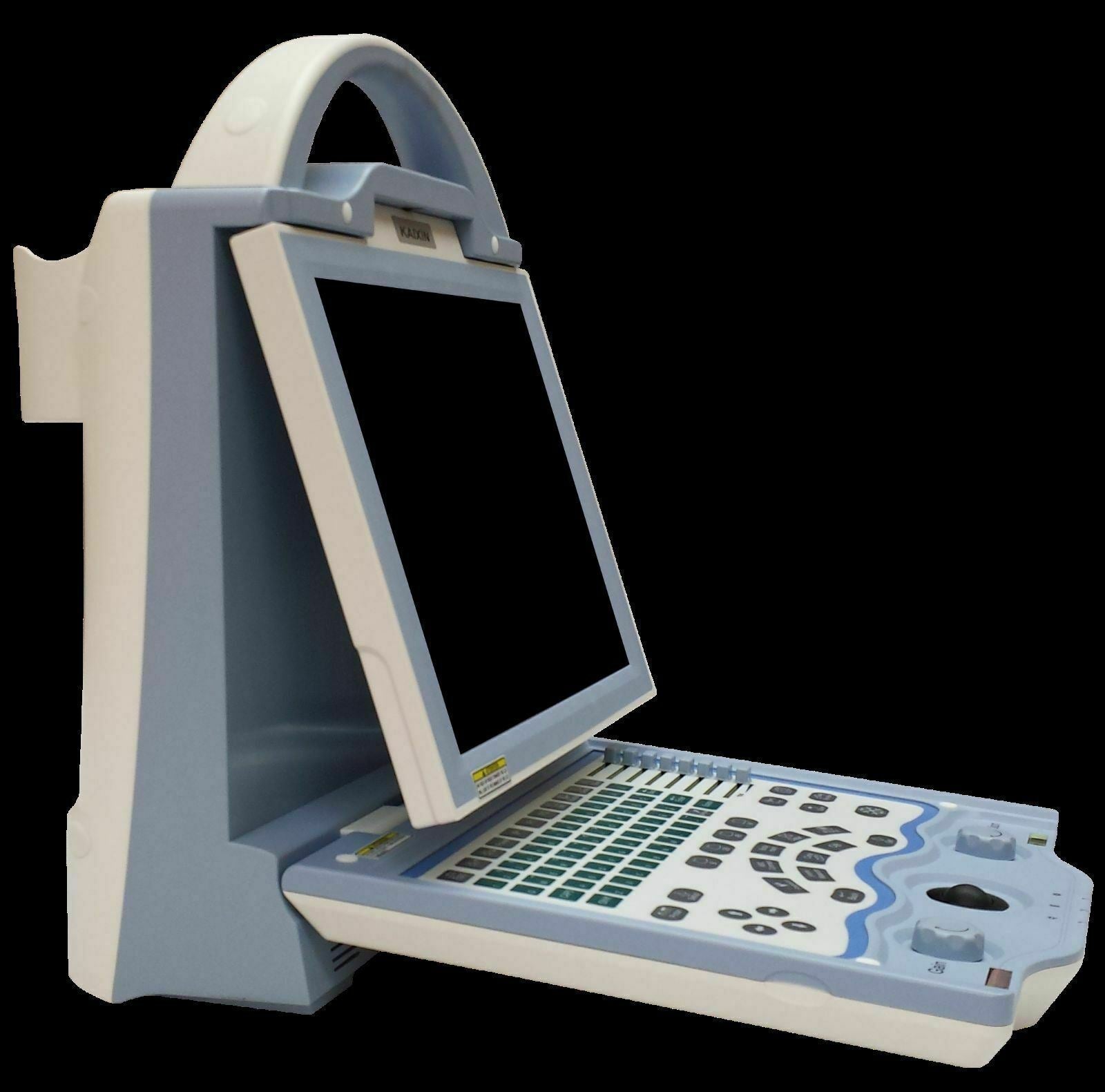

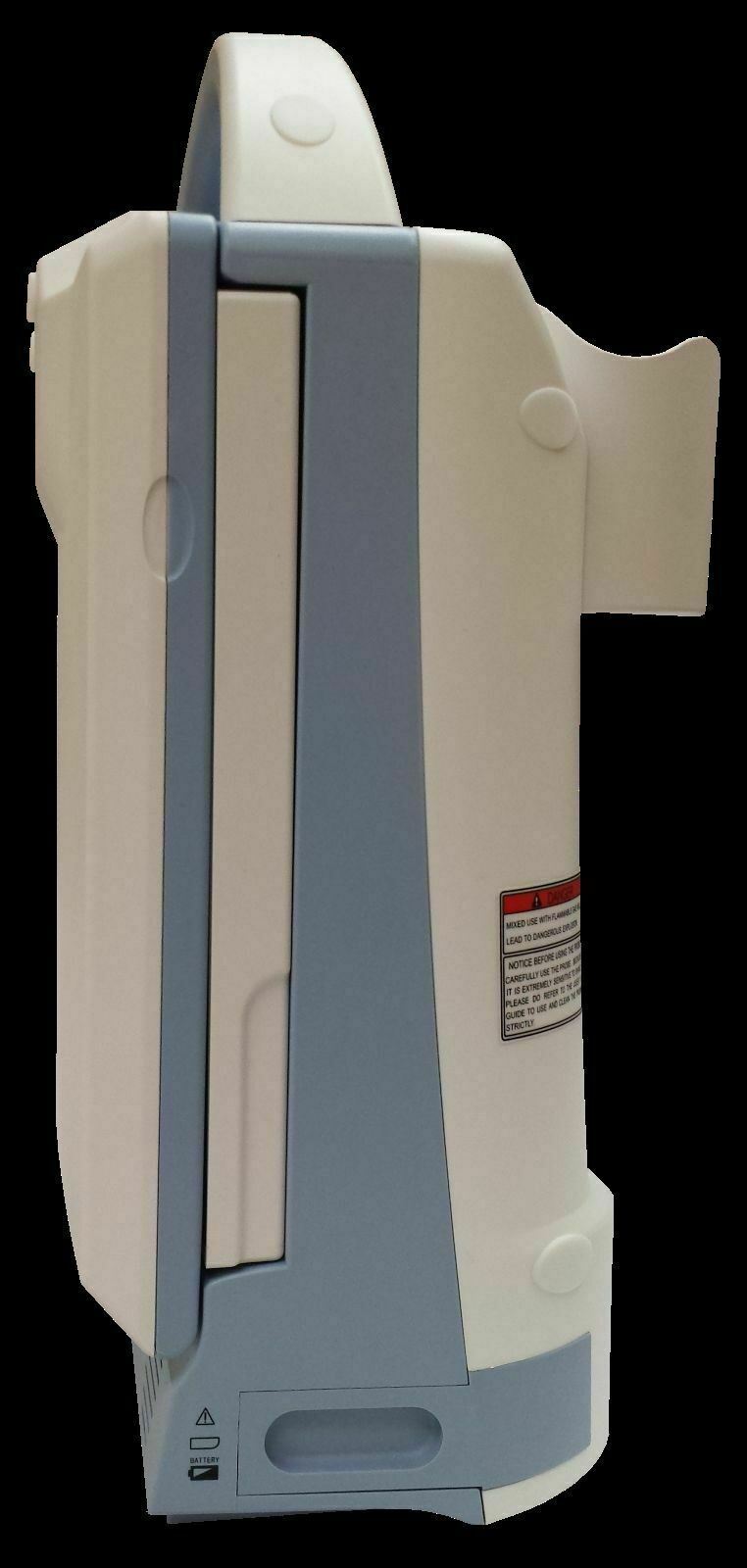

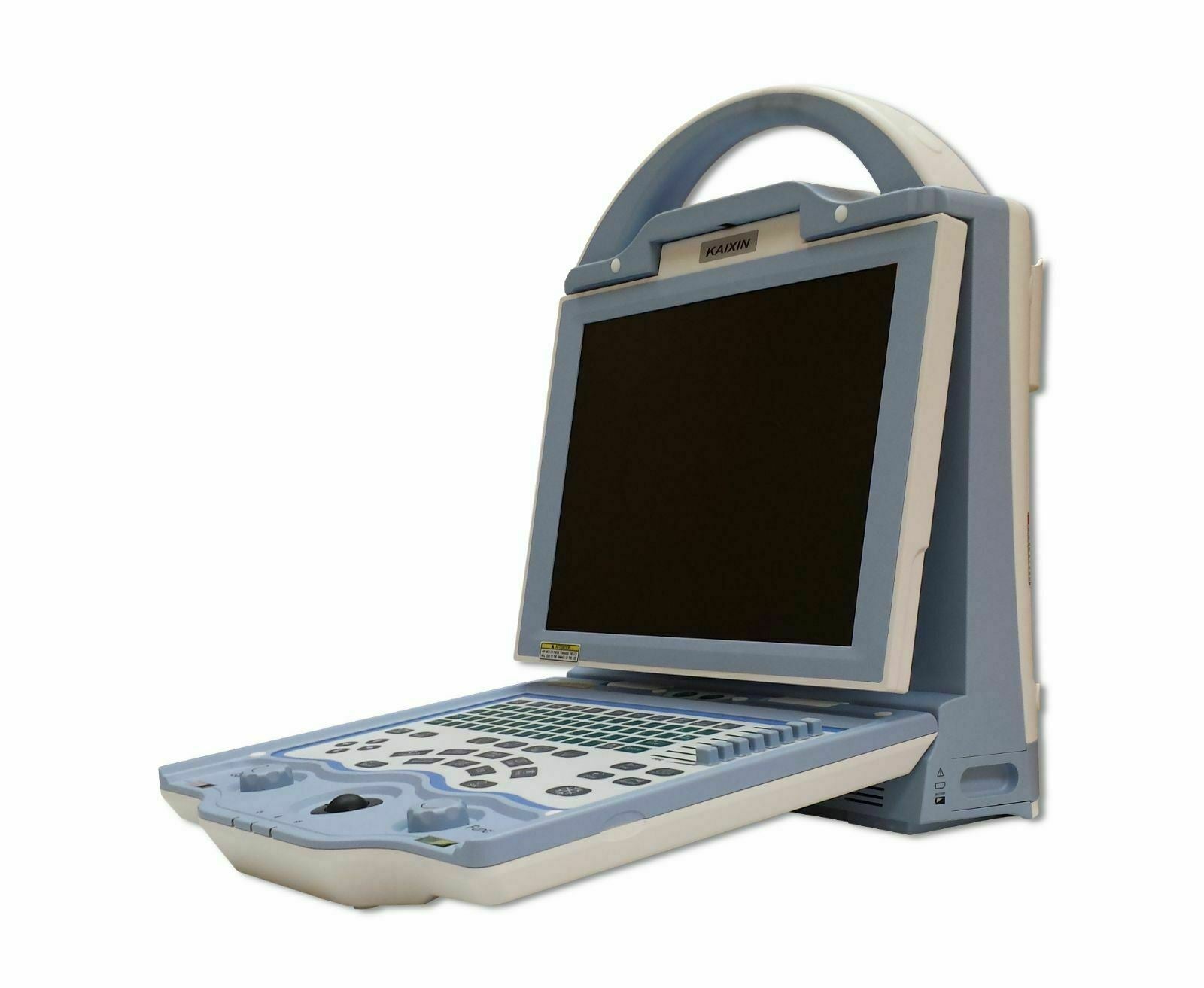

Veterinary Animal Ultrasound Scanner with Clear Image, Choice of Probes
Mobile LED Ultrasound With DICOM Come with one probe of choice in price. Additional Probe $1000 (specify at checkout) Probe Options: 4.0MHz Convex Rectal probe 6.5MHz Micro-Convex Probe for small animals 3.5MHz Linear Probe for eye muscle 3.5MHz Convex Probe 7.5MHz Linear Probe Advantages Lightweight at only10 lbs, including battery and probe. Similar ultrasounds are around 20 lbs. Large 10.4" LED screen, with full screen image. Two standard probe connectors Only veterinary ultrasound with standard DICOM Digital Imaging and Communications in Medicine (DICOM) is a standard for handling, storing, printing, and transmitting information in medical imaging. It includes a file format definition and a network communications protocol. Battery included, with 4 hours standard battery life. LED monitor allows outside work in sunlight without a sun shade. Anti-dust and anti-spalsh keyboard is convenient for outside conditions. Affordable price, similar models sell for above $4,999. 70mm rectal probe lens and 70mm wide image. Wide image is good for seeing big follicles in large animals. Specifications 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle. Adopt ARM7 embedded control system + FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable. Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese Two probe sockets, auto-identify different optional probe Body marks 1.General 2. Bovine 3. Canine 4. Equine 5. Feline 6. Cardio 7. Swine, total 27 kinds body marks indicating probe position Display mode：B、2B、4B 、B/M、M Adjustable depth: 10 grades, max depth to 236mm Gain：0～127dB Contrast：27～90dB Gray scale：256 8 steps intelligent TGC 8 kinds pseudo colors Image storage: 4G hard disk to permanently store about 5000 frames images Cine loop：256 frames Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position) the gravel software package with real-time position line measurement Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc. Cardio measurement：Depth, slope, heart rate, cycl； OB measurement including: Cattle, dogs, horses, cats, goats, camels and sheep and pre-gestational age birth Other measurement: pig’s meat factor measurement OB report function One-key store: concise and practical One-key review：fast, practical image review function One-key Print One-key Transfer the current frozen image to net workstation to complete its image text report and print directly Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station which is really complicated and waste time) Unique One-key-light keyboard function for black room use Display brightness adjustable Dual TV output: PAL/NTSC, can connect video printer when necessary Power supply：100-240V～ 1.2-0.6A frequency：50-60Hz Power supply adaptor output：DC12.8V 3.0A Main unit weight：4.5kg（without accessories） Main unit dimension：256×150×326mm（L×W×H) Main basic configuration Main unit 6.5MHz linear rectal probe Power supply adaptor Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh Reticle Two probe sockets DICOM 3.0 Optional Battery charger Trolley Video printer (UP-897MD） Ethernet Switch KeeboMed, Inc Mount Prospect, IL USA "The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item." If you have questions about legal obligations regarding sales of medical devices, you should consult with the FDA's Center for Devices and Radiological Health. International Buyers – Please Note: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional charges might be.
