Description
Newest Color Doppler Ultrasound Scanner - Convex & TV Probe, PW, Multi Language

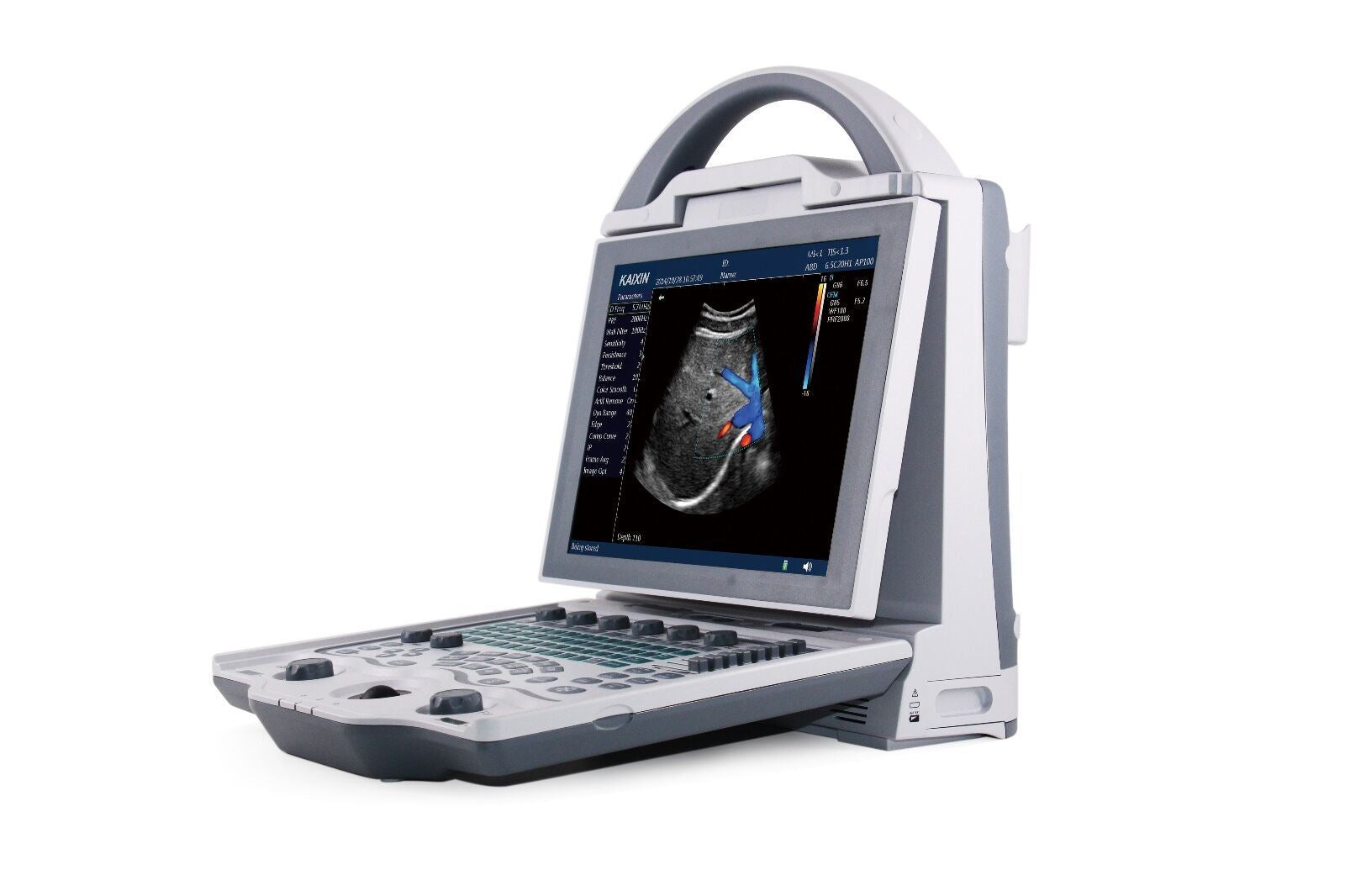

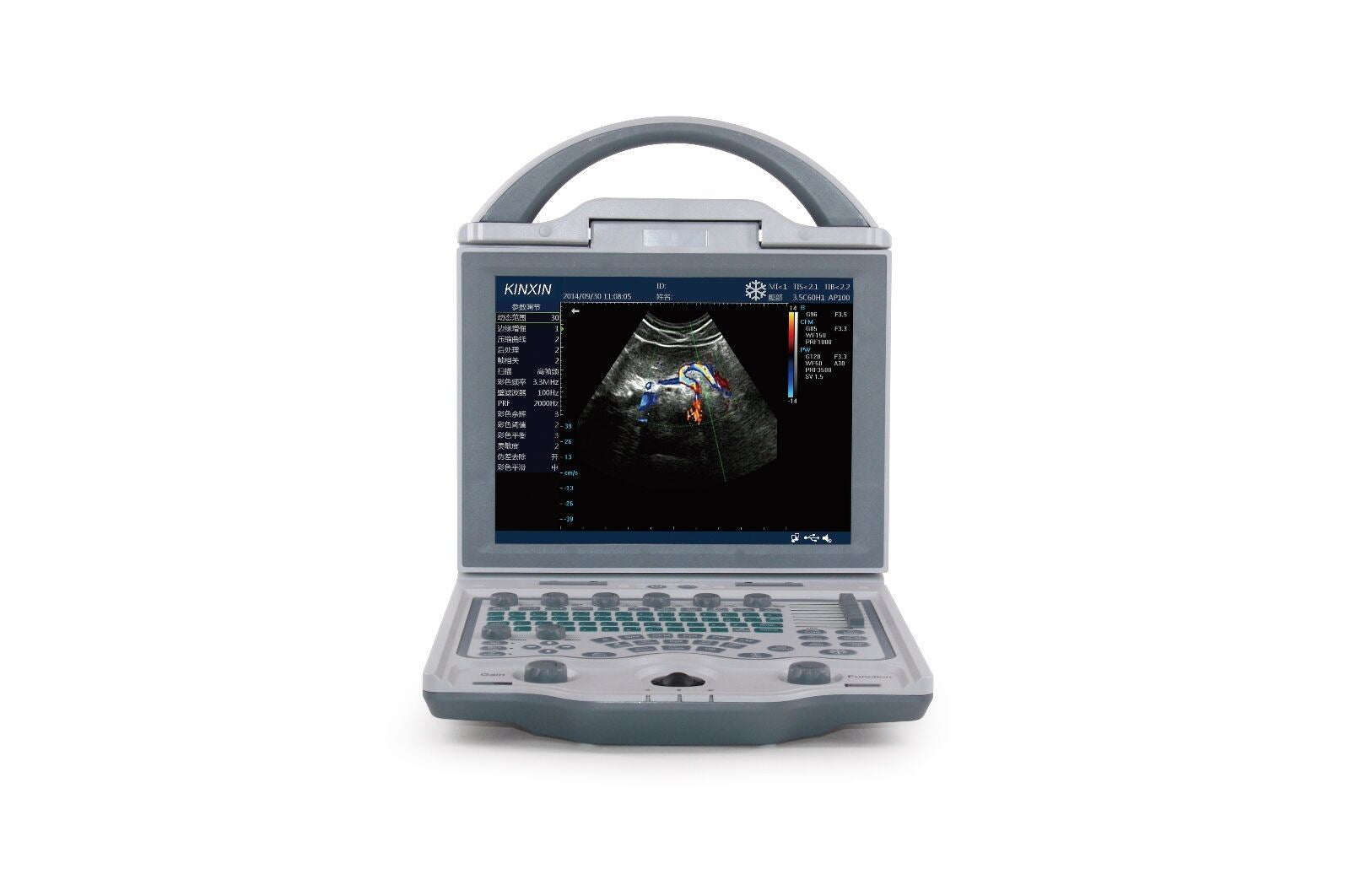

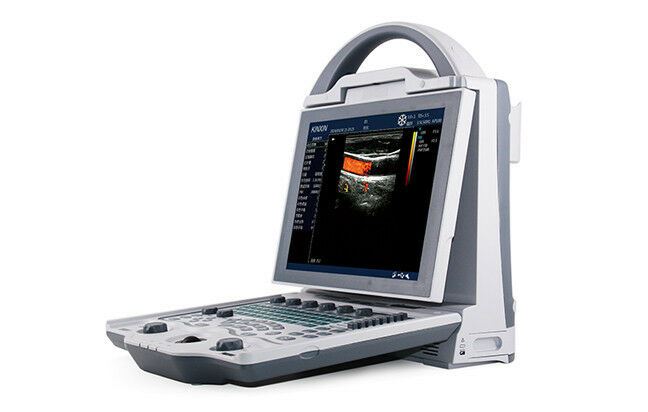

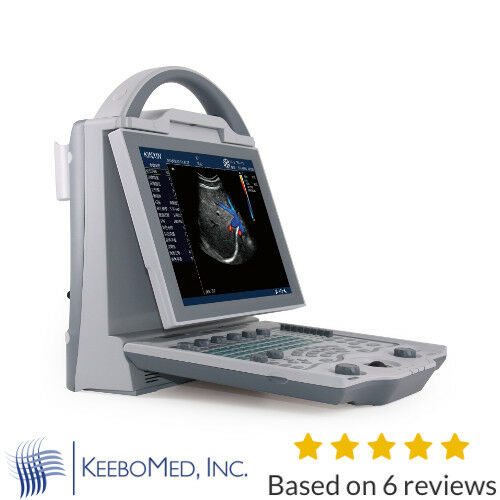

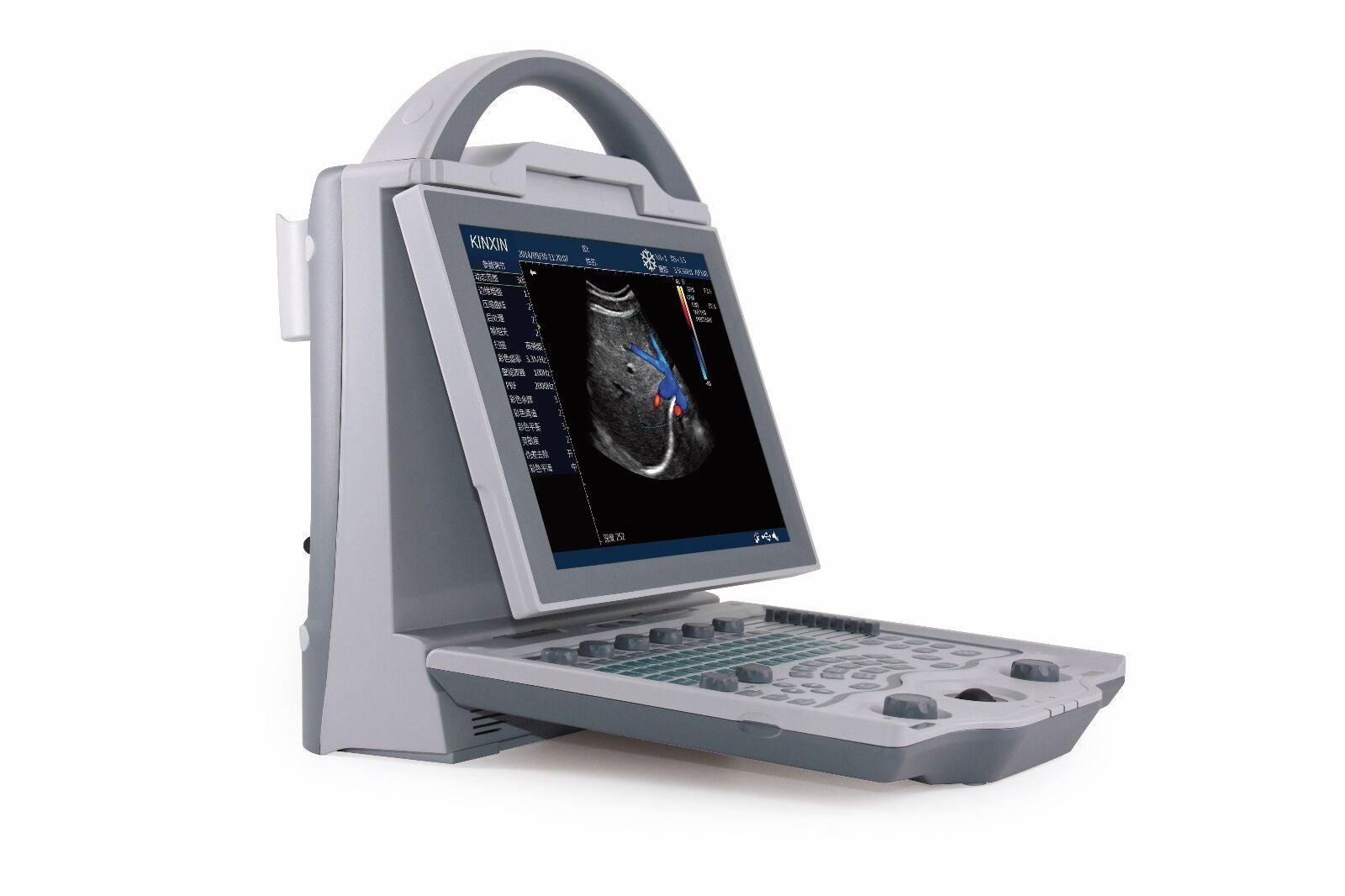

Newest Color Doppler Ultrasound Scanner DCU12
Comes with 2 probes: Convex, Transvaginal. Probes can be exchanged according the needs. Designed for those who can’t afford high cost but really need color doppler system. Multi-language software can be switched to Spanish, French, Russian, Portuguese.
Has all features needed for animal examination without many extra features needed for human ultrasounds.
Note: This Ultrasound is Not FDA approved for Human use in USA, but it can be used for human use all over the world except in the USA. Veterinary use only in the USA.
The trolley-cart can be bought for additional $300, plus shipping. Additional Probe is $1399. Probes: Probes can be exchanged according the needs. Warranty included.
Features
- Software Packages
- Transmitted Signal Accuracy Control
- i-Image, Image Optimization Imaging Enhancement
- Adaptive Color Artifact Removal Technique
- Linear Probe Independent Angle Deflection
- i-Station, Integral Working Station
- Phase Enhance Harmonic
- Accurate Vessel Imaging
- Convenient and Practical Data Manager
- Abundant Measuring Software
General Description
- Built-in embedded A8 platform, totally against virus invasion, with high reliability.
- Operating system: Linux
- Digital multi-beam forming technology, precision delay-by-point dynamic receive focus, ultra-wideband imaging, adaptive image optimization, adaptive angiography, adaptive Doppler imaging.
- Ultra-wideband fully digital beam former: Dynamic Focus
- Gray-scale imaging unit
- M-mode imaging unit
- Visual adjustable dynamic range
- Gray-scale imaging unit, grayscale ≥256 levels, with excellent contrast resolution and the audience subtle and uniformity
Technical Parameters:
- Gray scale:256 levels
- Color scale:256 levels
- Display: 10.4’ Flicker-inch high-resolution LCD dedicated medical color display
- Power supply:100-240V~ 1.2-0.6A Fre:50-60Hz
- Adapter output:DC12.8V 3.0A
- Power consumption:≤100VA
- Main unit dimension:approx 256×150×326(mm,L×W×H)
- Main unit N.W.:4.5Kg (without accessories)
Multimedia and Peripheral Equipment:
- Video printer
- i-Station integrated workstations, to achieve store images, report generation and cloud printing capabilities
- U disk (file management support, software upgrades, and one-key store function), DICOM interface, easy to doctor's data management, remote transmission
- Dual TV output: PAL/NTS
Operating Modes:
- B, B/B, 4B
- M, B/M
- CFM
- PDI
- PW
- THI
Operating System Setup
- Basic Setting: Interface language, time, date and date format, screen-savers time settings, key tone setting, standard setting, font brightness setting.
- Formula preset: gestational formula for cattle, dogs, horses, cats, goats, camels, sheep and pigs.
- Notes preset: disease, routine, abdominal, obstetric, cardiac, urology, superficial seven kinds, can be preset for each common noun, and can be added, modified and edited according to the actual requirements, very user-friendly
- Stored presets: Photo storage format selection: BMP, PNG format (image compression format).
- Password preset
Standard Configuration:
- Main unit
- Two probe sockets
- convex probe
- linear probe
