Description

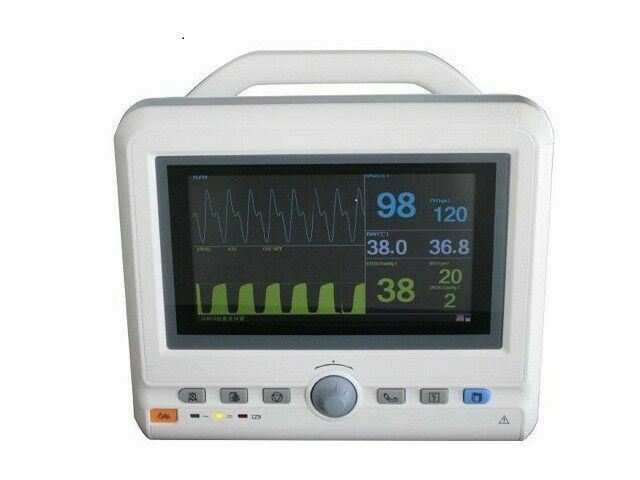

12" Veterinary Side Stream Capnograph Patient EtCo2 SpO2 Multi Parameter Monitor
Function:
Monitor used to testing parameters:ETCO2,INCO2,pulse rate,respiration rate,temperature SPO2.
The ET-CO2 monitor is a multifunction patient monitor that provides measurements including the SPO2, Temperature, PR,RR, IN-CO2,and ET-carbon dioxide (CO2). This monitor is only suitable for animals and may be applied in general ward, including, but not limited to, ICU, CCU or ambulance and so forth.
Technical Characteristics:
1.test parameters;ETCO2,RR,insp.CO2
2.capnography(CO2),
units:mmHg;kpa;%
method:non-dispersive infrared;auto calibrating N2O compensation:manual;on/off,user selectable
range:0 to 114 mmHg;0 to 15% flow, sample rate: sidestream; 50ml/min Accuracy: ± 2 mmHg or 5% of reading
3. Respiration rate: 2 to 120 bpm(CO2) Resolution:1 breath/min
4. interface & Display: membrane activated Rotary Knob: push and rotate, 24 steps/turn Screen: 7.0 inch active color TFT
Resolution:800*480 pixels Waveform types: CO2; Pleth; Sweep speed: 6.25, 12.5, 25mm/s
